Micropositioners

Sivaley carries the following micropositioners provided by Everbeing Int'l Corp for you to configure a probe station system to suit any application. They can also be used stand-alone or third-party systems.

EverBeing EB-050V Micropositioner 1.0µm Resolution, Vacuum Base

Our EB-050V Micropositioner offers true linear motion of 12mm in each axis X-Y-Z and 1.0µm resolution. Supplied with Vacuum Base. Suitable for use with standard bracket or with soft landing inclination using our coaxial and triaxial tubular tip holders.

Accuracy: 1.0micron (1.0µm )
Base Type: Vacuum
Precision linear bearings
Travel X-Y-Z: 12MM * 12MM * 12MM
Lead screw: 80 TPI (threads per inch)
Available in Left and Right hand version if required
Dimensions: 52mm(W) x 96mm(D) x 76mm(H)
Weight: 550g

The EB-050 series is available in left and right hand versions with Permanent Magnet (M), Magnet on/off (E) or Vacuum bases (V) to suit all applications. Also available in 100TPI for 0.7µm resolution.

Please contact us for more information.

Contact Us

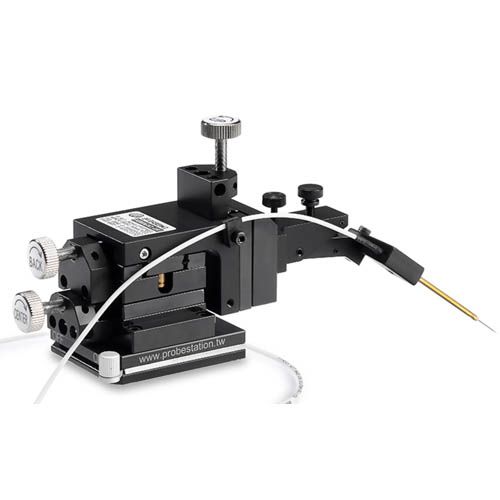

EverBeing EB-050M Micropositioner 1.0µm Resolution, Magnetic Base

Our EB-050M Micropositioner offers true linear motion of 12mm in each axis X-Y-Z and 1.0µm resolution. Supplied with Magnetic Base. Suitable for use with standard bracket or with soft landing inclination using our coaxial and triaxial tubular tip holders.

Accuracy: 1.0micron (1.0µm )
Base Type: Magnet on/off
Precision linear bearings
Travel X-Y-Z: 12MM * 12MM * 12MM
Lead screw: 80 TPI (threads per inch)
Right hand Version
Dimensions: 52mm(W) x 96mm(D) x 76mm(H)
Weight: 550g

The EB-050 series is available in left and right hand versions with Permanent Magnet (M), Magnet on/off (E) or Vacuum bases (V) to suit all applications. Also available in 100TPI for 0.7µm resolution.

Please contact us for more information.

Contact Us

EverBeing EB-050E Micropositioner 1.0µm Resolution, Magnet On/Off

Our most popular Micropositioner offering true linear motion of 12mm in each axis X-Y-Z and 1.0µm resolution. Supplied in left hand version with Magnet On/Off Base for ease of placing and positioning on the platen. Suitable for use with standard bracket or with soft landing inclination using our coaxial and triaxial tubular tip holders.

Accuracy: 1.0micron (1.0µm )
Base Type: Magnet on/off
Precision linear bearings
Travel X-Y-Z: 12MM * 12MM * 12MM
Lead screw: 80 TPI (threads per inch)
Available in Left and Right hand version if required
Dimensions: 52mm(W) x 96mm(D) x 76mm(H)
Weight: 550g

The EB-050 series is available in left and right hand versions with Permanent Magnet (M), Magnet on/off (E) or Vacuum bases (V) to suit all applications. Also available in 100TPI for 0.7µm resolution.

Please contact us for more information.

Contact Us

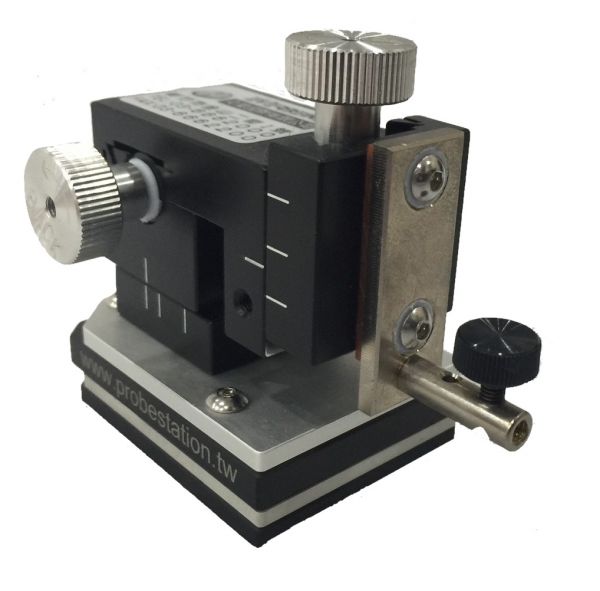

EverBeing EB-700M Series Miniature Micropositioner, 3.0µm Resolution

Space saving Micropositioner with linear motion of 12mm in each axis with 3.0µm resolution. Supplied with Magnet on/off (E) base. Also available with Permanent Magnet (EM-700M) or Vacuum base (EM-700V). Supplied with Permanent Magnet (M) base. Also available with Magnet On/Off (EB-700E) or Vacuum base (EB -700V).

Accuracy: 3.0 micron (3.0um)
Travel X-Y-Z: 12MM * 12MM * 12MM (standard)
Travel X-Y-Z: 20MM * 20MM * 20MM (please ask)
Lead screw: 40 TPI (threads per inch)
Available in Left and Right hand version if required
Dimensions: 38mm(W) x 62mm(D) x 45mm(H)
Weight: 200g

Please contact us for more information.

Contact Us

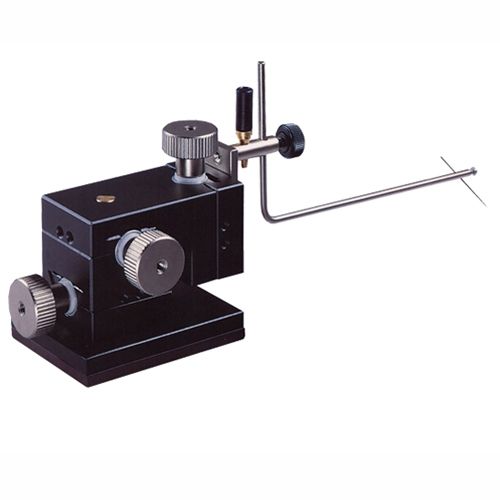

EverBeing EB-700E Series Miniature Micropositioner, 3.0µm Resolution

Space saving Micropositioner with linear motion of 12mm in each axis with 3.0µm resolution. Supplied with Magnet on/off (E) base. Also available with Permanent Magnet (EM-700M) or Vacuum base (EM-700V).

Accuracy: 3.0 micron (3.0um)
Travel X-Y-Z: 12MM * 12MM * 12MM (standard)
Travel X-Y-Z: 20MM * 20MM * 20MM (please ask)
Lead screw: 40 TPI (threads per inch)
Available in Left and Right hand version if required
Dimensions: 38mm(W) x 62mm(D) x 45mm(H)
Weight: 200g

Please contact us for more information.

Contact Us

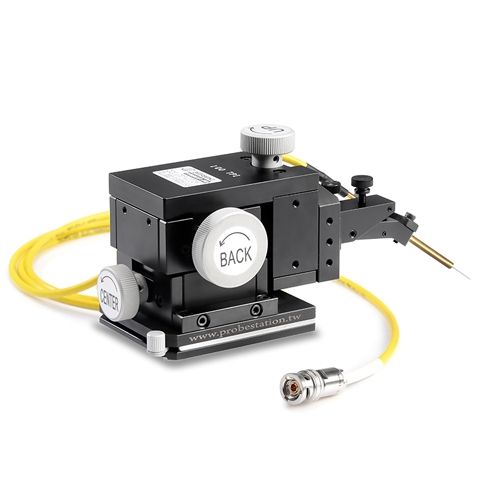

EverBeing EB-005E Precision Micropositioner, 0.3micron

High precision micropositioner with true linear motion of 12mm in each axis with 0.35/0.70um resolution. Larger footprint for greater stability and finer control, for RF probing. Available with Permanent Magnet (M), Magnet on/off (E) or Vacuum bases (V) to suit all applications.

Accuracy: 100 TPI = 0.70micron (0.70um) / 200 TPI = 0.35micron (0.35um)
Travel X-Y-Z:12MM * 12MM * 12MM
Lead screw: 100/200 TPI (threads per inch)
Base Types: Permanent Magnet, Magnet on/off or Vacuum
Dimensions: 52mm(W) x 96mm(D) x 76mm(H)
Weight: 1000g

Please contact us for more information.

Contact Us
